A Wharf for Gardens
Urban Multi-Courtyard Park in Hongqiao, Shanghai.
Guanglian Headquarters Campus Green Axis Design.

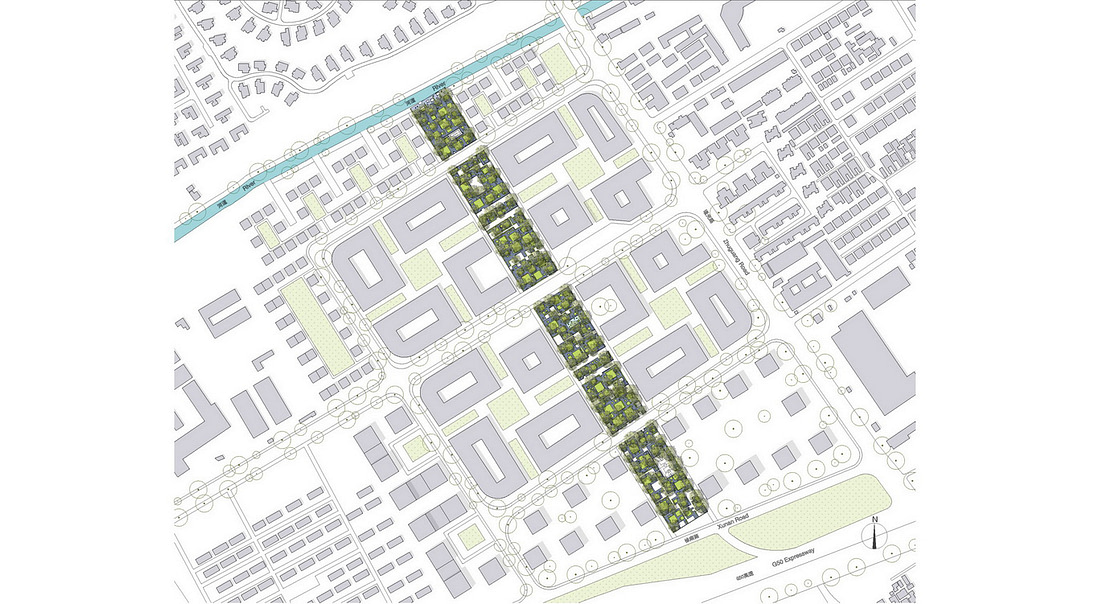

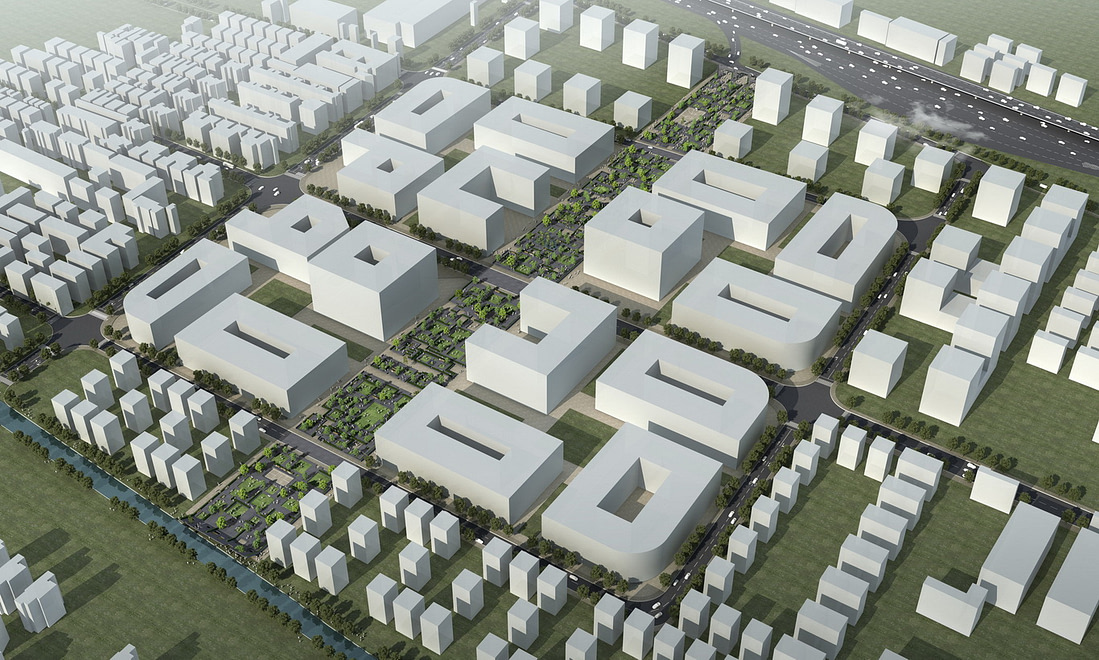

This is a project for a long central park in a new development for commercial, offices and residences in Hongqiao district in Shanghai. The southern side of the park is open to the main road entrance from the highway, so is surely the most important view axis to advertise the new area but also the main entrance for the noise from the busy street.

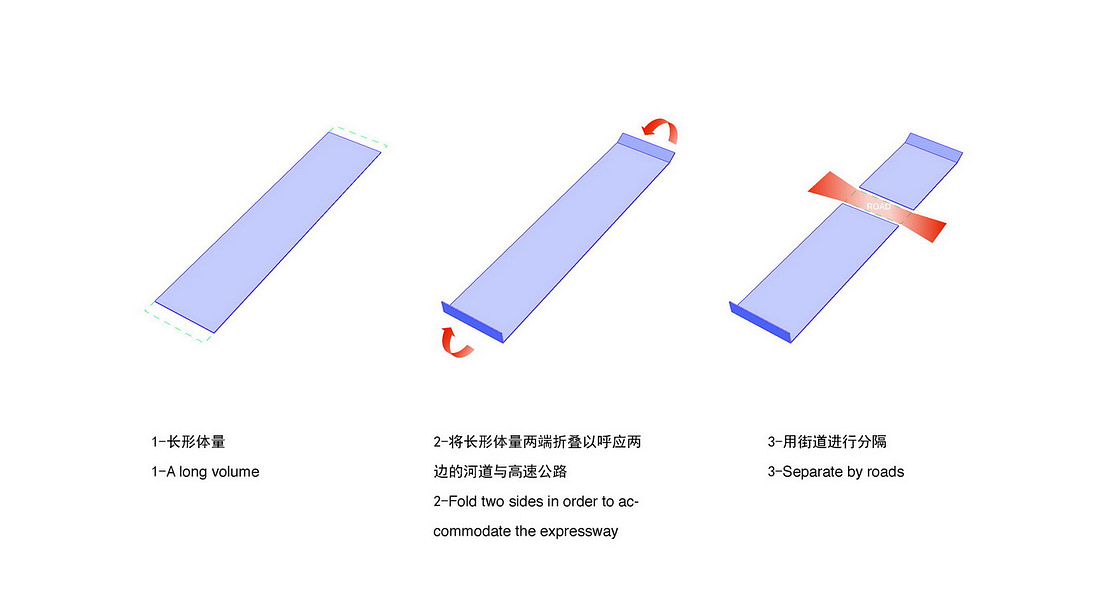

Our design land in the area as a slim sculpture in urban scale floating along the main axis like a ship.

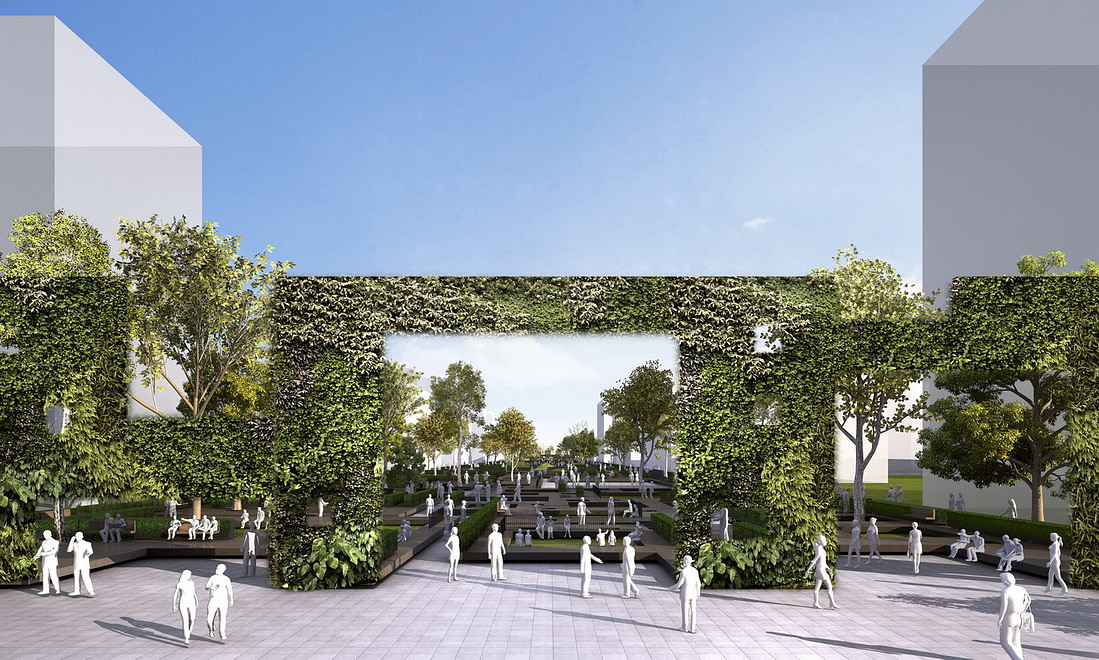

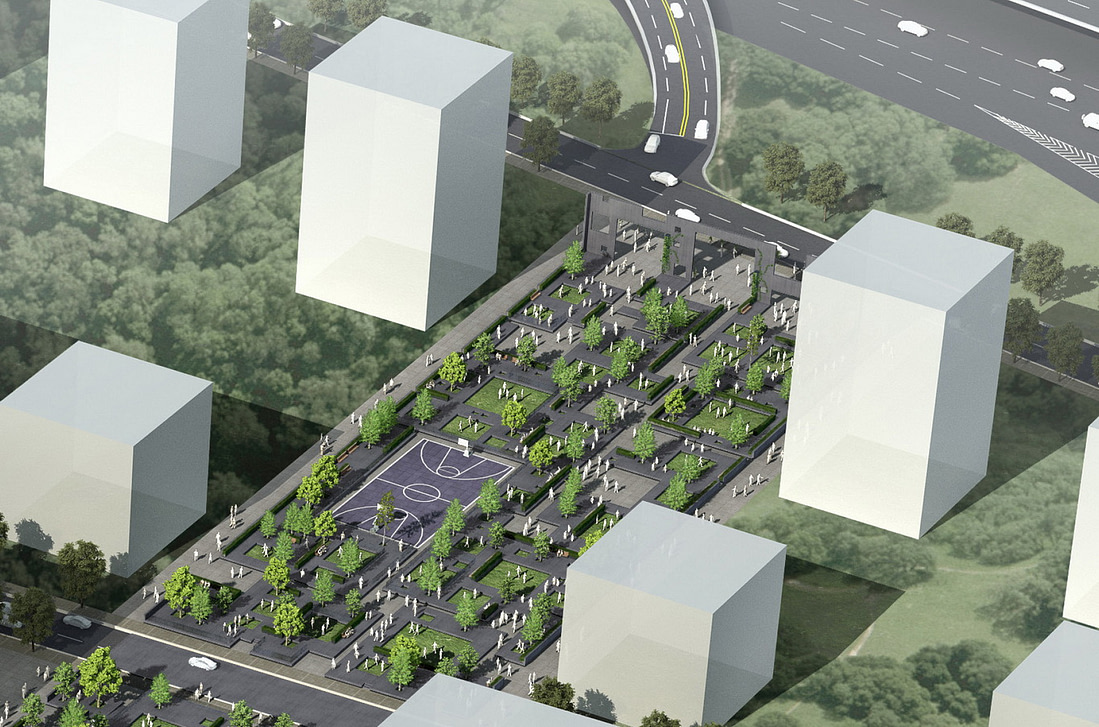

The two sides of the “ship” create two strong landmarks that emphasize in one side the entrance of the park thanks to a tall gate completely perforated and open to the park to let the view and the people enter on the green “ship”, and on the other side a leaning gate/wall overlooking on the small river tangent to the site.

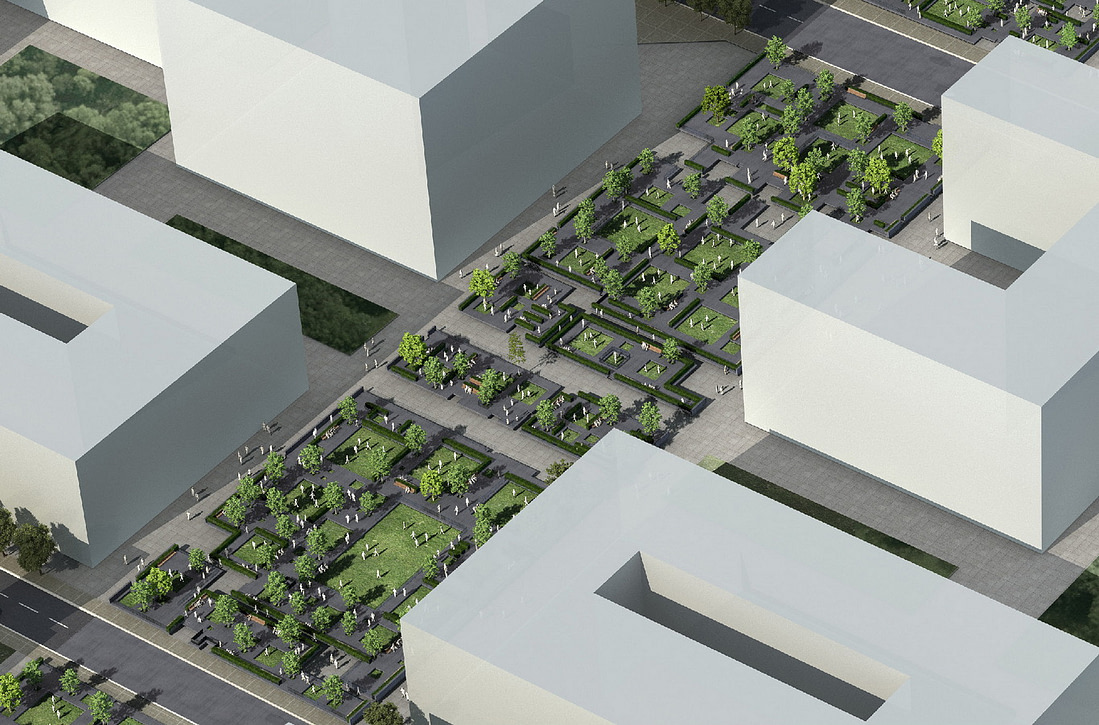

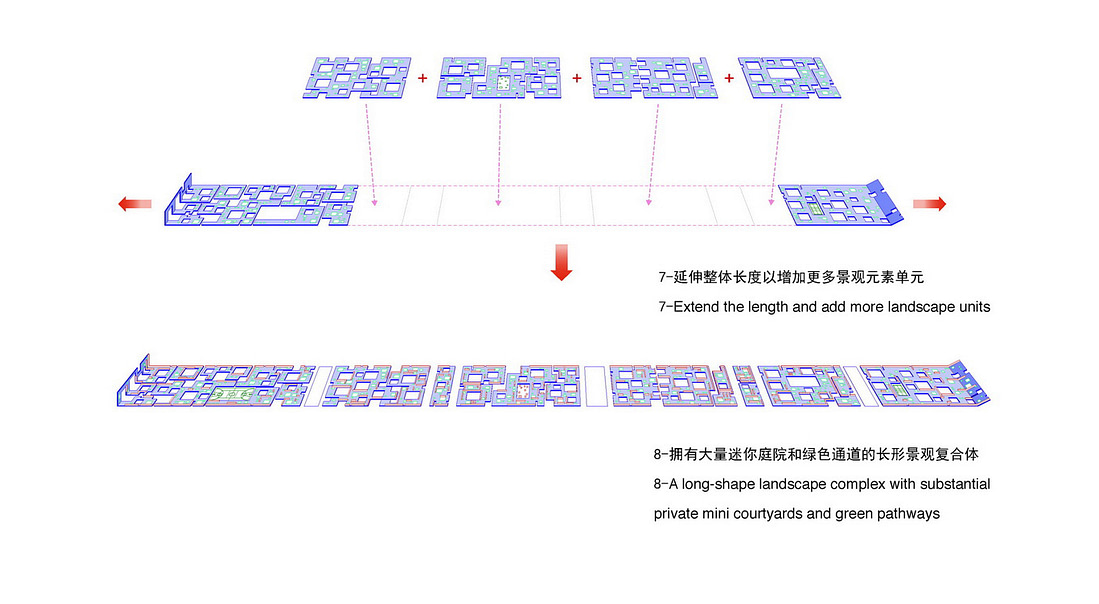

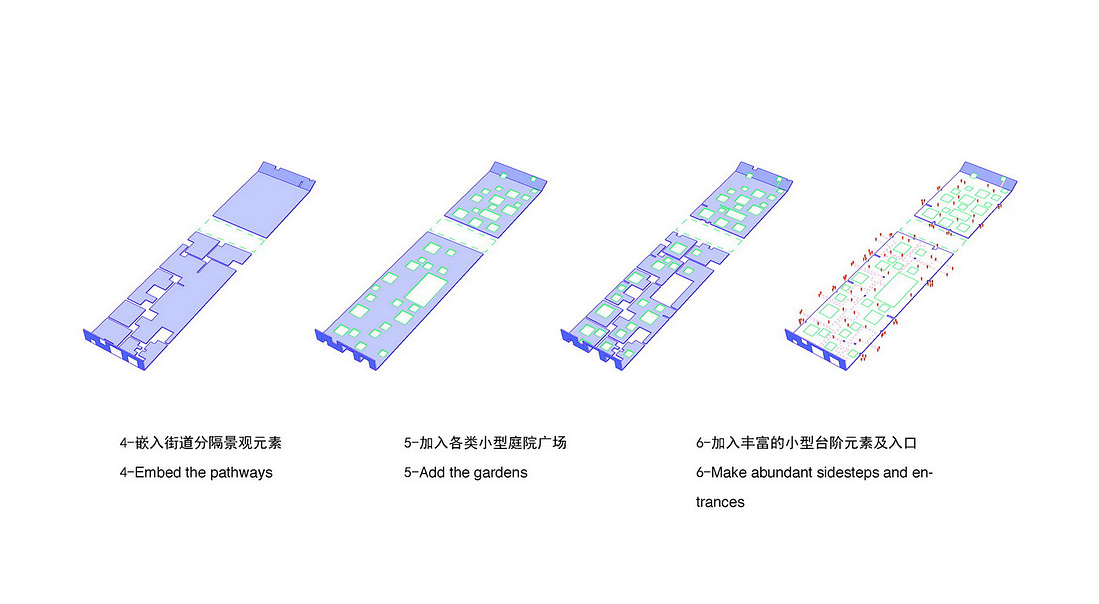

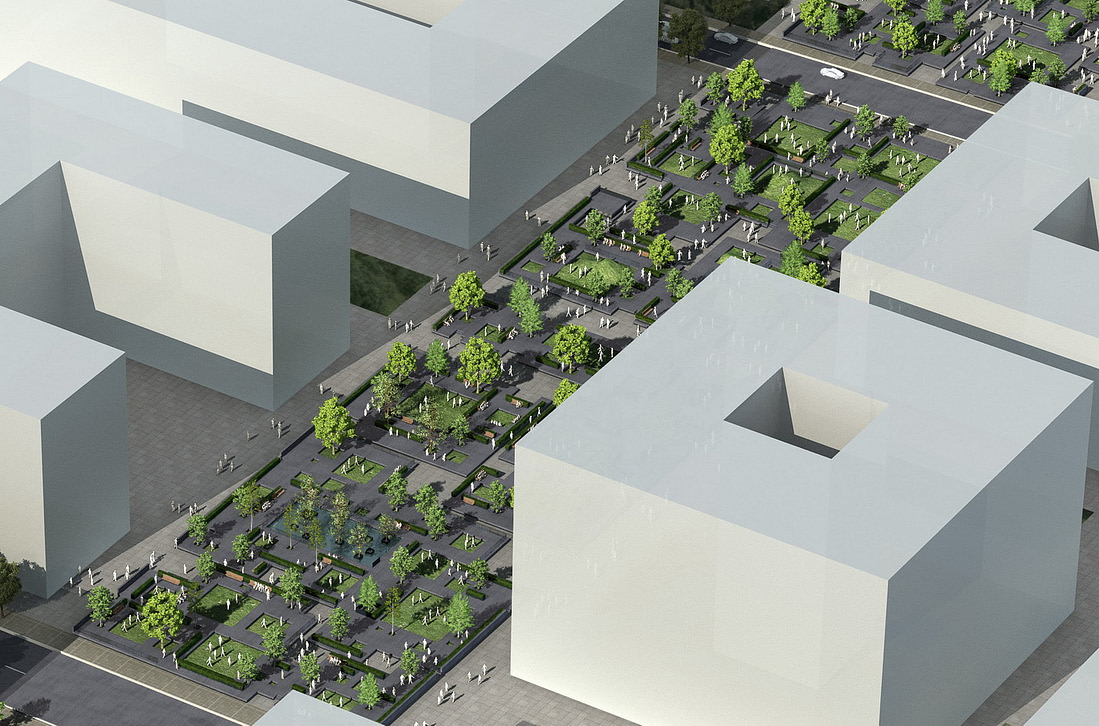

The main body of the long landscape sculpture interact with the urban space like a dock where people can seat on or walk around or climb and enter in the hundreds gardens extracted inside the long elevated platform. This floating slab is only forty-five centimeters high but is enough to circumscribe many comfortable human sized spaces along the alleys and the small plazas and gardens scissored from this gigantic floating wharf.

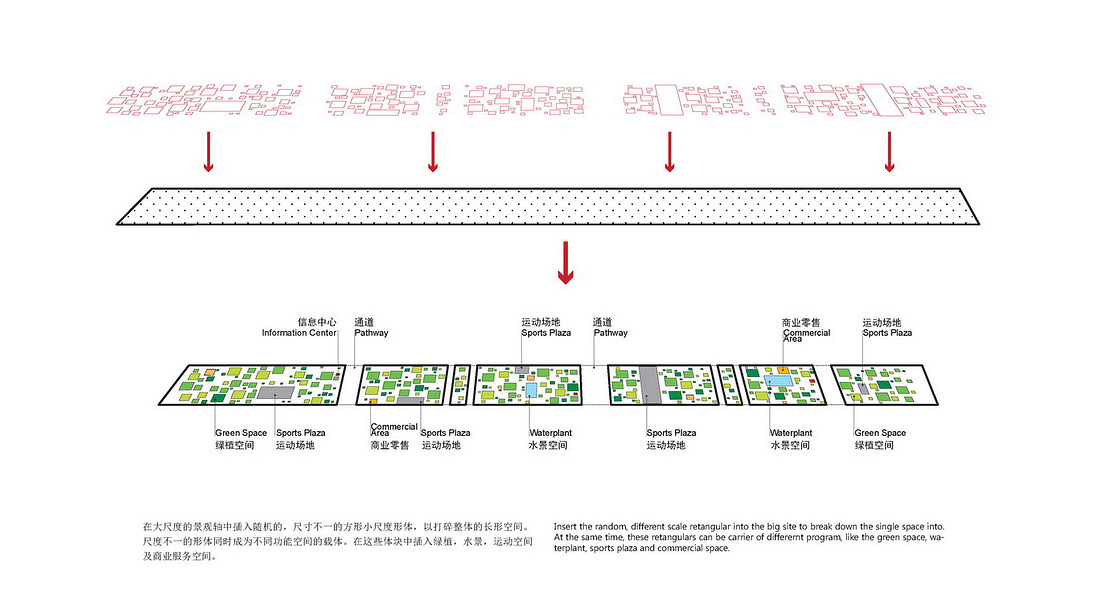

Each garden have a different size and a different “topics”; like a botanic garden each green square gathers different plant species or different functions so that the final result is extremely varied.

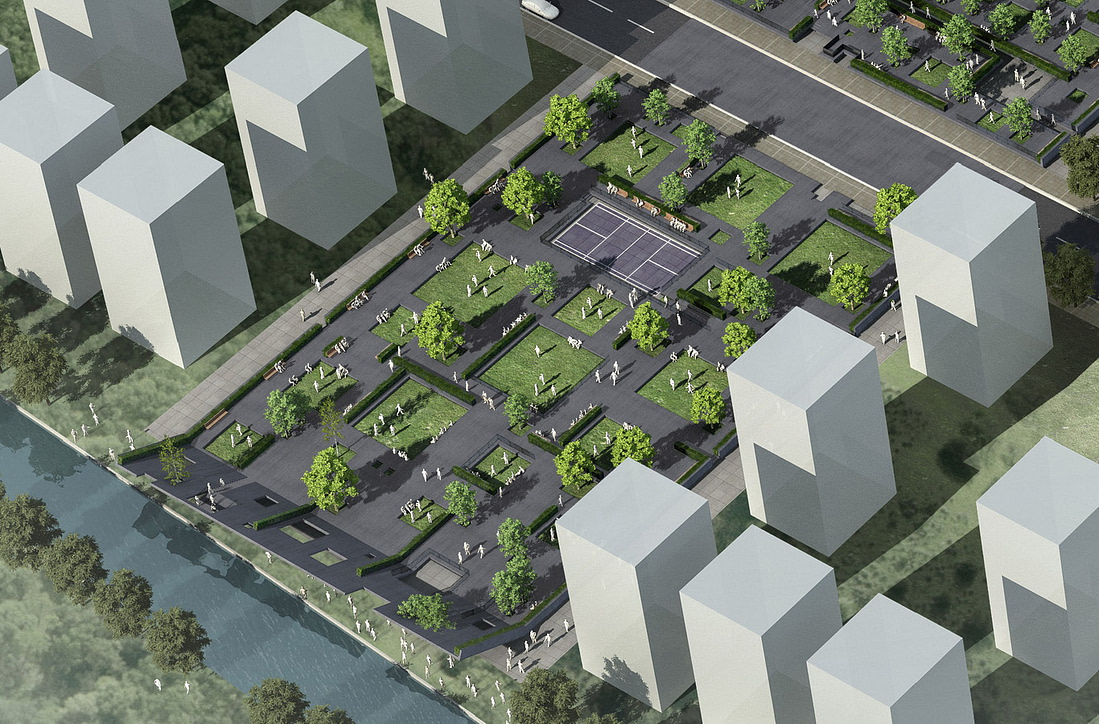

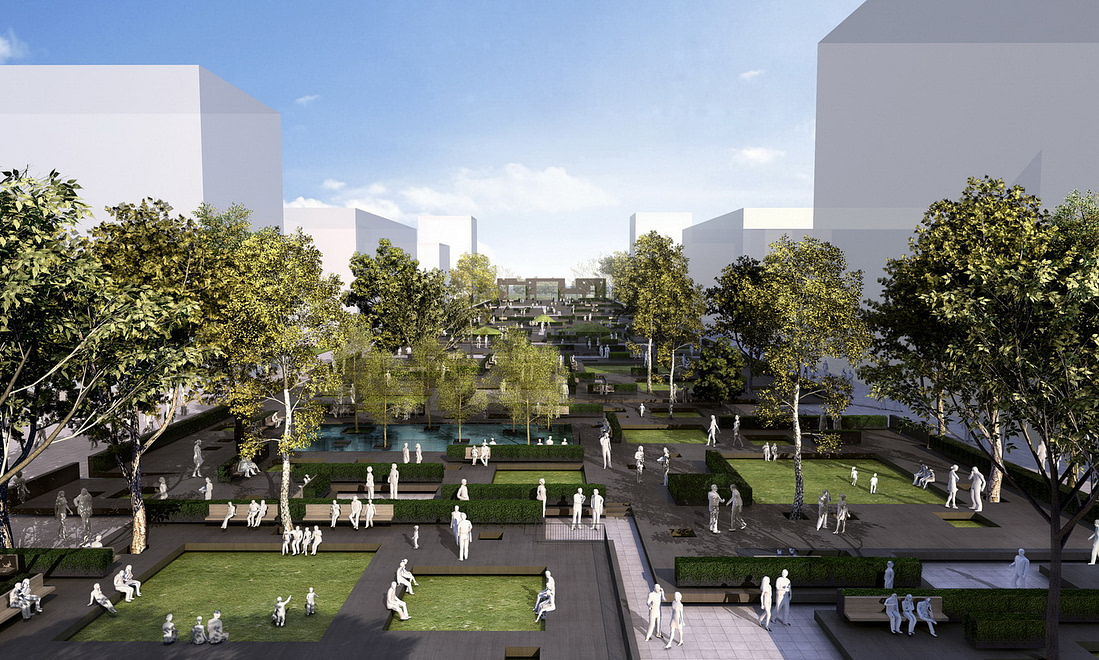

You will find near the residential areas, courtyards reserved for basketball and badminton courts or for Tai Chi and street dance gatherings. In other areas there will be small plazas reserved for old people activities like cards or mahjong. Some of the courtyards is filled with water so to create other features and activities like fishing or RC boat areas or beautiful green ponds with aquatic plants and flowers.
Green squares will be also reserved for kids playgrounds and there will be also a skate board area on the leaning slab on the norths end where also stairs will bring the visitors to a small balcony on top of the river.

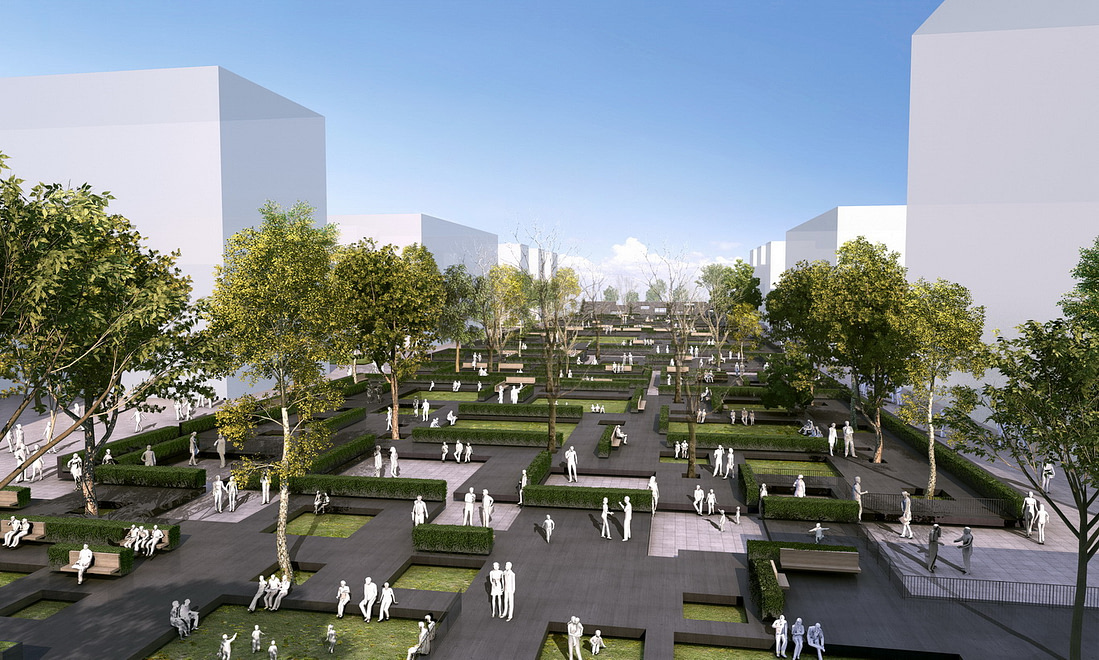

Over the concrete slab there is another layer of elements composed of metal planters volumes with wooden benches and steel parapets. All those elements will create visual screens helping to increase even more the sense of enclosure and privacy for the people enjoying the inner parts of the park, especially for the people seating on the slab or on the beaches those elements will protect the view from the big flow of people circulating in front of the commercial buildings. All those planters will increase the green ratio and bring stripes of green also in the diagonal and vertical surfaces of the two ends of the site.
The complexity of the design pattern, made by many different layers, shapes and elements, will surely enrich the urban space quality of the area creating many opportunities for people to gather and enjoy many small plazas connected by narrow alleys surrounded by green screens and seating docks; experiences you find more and more rarely in a big metropolis like Shanghai.
Clearly the main goal of our design is not only to create a decorative and iconic green landscape but also to realize an inviting place where people can truly find the same quiet peace and privacy that will be found in a private garden.

庭院避风港
城市多庭院式公园,上海虹桥

此设计项目是一个长形的中央景观公园,位于上海虹桥新规划的商业办公住宅区中心。公园南侧开口正对着高速公路下闸道,占据了至关重要的视觉轴心,因此我们希望通过巧妙的设计使该入口不仅对新区有绝佳的宣传吸引作用,同时将内部区域与外部吵杂污染的交通道路隔离开来。

我们设计区域沿着中心主轴,如同一只长形船舶雕塑般飘浮于景观区域中。而“船舶”两端则分别创造出了两个个性鲜明的城市地标:一边通过大型镂空的透视大门让人们可以随时观赏到内部公园的美景并吸引人们前来游玩,另一边则通过一扇斜放的大门/墙体让人们可以随时观赏公园侧边的河景并在大门/墙体上嬉戏玩耍。

设计主体的长形景观构筑物与城市空间多元互动,像码头般让游客在上方自由嬉戏,或行、或坐、或攀爬、或进入长形起伏平台上方上百个小型庭院。尽管整体平台只有45厘米高,但仍能在巨大的平台港湾上区隔剪接出无数适合人群高度游玩的舒适空间,如小巷、迷你广场、庭院花园等等。

每个庭院花园都拥有不同的大小甚至“主题”:例如植物园内的各处都集结了不同的植物种类或功能,从而营造多元化绿色生态区域。而在靠近园区中住宅区的部分,则特设充满都市健康人文关怀的篮球场、羽毛球场、太极区、甚至广场舞蹈区。与此同时,我们还设计了一些供中老年居民进行公益类棋牌类活动。另外,还有一些亲水景观庭院创造出了不同的景观元素,在其中不仅可以提供趣味垂钓或者遥控小船的游乐功能,还可以形成观赏性极佳的自然生态池塘及水生植物花卉,其他的绿色区域则能成为儿童乐园。最后,斜放的大门/墙体还具有小型滑板广场的功能,并且自然引领游客在上面放松休憩,还能通过这样一个类似露台般的构筑物尽情观赏河道美景。

我们还可以看到,在混凝土筑造的平台上方还有一层不同材质并带有不同功能性的景观元素,如:金属制花坛、木质座椅,以及钢制护栏等。所有这些细节设计元素在提升整体景区视觉观赏性的同时还提升了一定程度的私密感,让游客能够更随性的享受各庭院内部环境。特别是对于坐在平台或长椅上的游客来说,这些小型的景观附加元素还能一定程度上遮挡住商业区周边繁杂的人潮,使他们更放松的沉静在庭院所带来的幽静氛围中。另外,花坛部分在提升整体园区绿化覆盖率的同时,也在园区两端创造了风格多样竖向斜向交织的新颖绿色元素。

此个设计肌理的多样性体现在不同的层次,形状线条,元素中,而我们相信正是通过这样的设计手法能使整体城市空间质感有所提升,更重要的是通过这些各处曲径通幽的迷你庭院广场、绿色生态空间、座椅休憩区域,周边的人群也获得了相聚游玩在此的绝佳理由和机会,而这样的活动也正是我们生活在上海这样大都市中越来越弥足珍贵的体验。


最后,本次设计的目的也显得尤为清晰:我们不仅仅希望能创造出一个充满创意的城市地标性绿色景观,更希望通过这样的景观形式让人们意识到这份难得的私密平静感,并在如此和谐美好的生态伊甸园中寻找体会到只属于自己的绿色避风港。

Gardens Wharf credits:

design firm: 3GATTI
chief architect: Francesco Gatti
project manager: Liman Wei

client: Hongqiao Administration

Gardens Wharf credits:

design firm: 3GATTI
chief architect: Francesco Gatti
project manager: Liman Wei

client: Hongqiao Administration
