Red Star Shopping Mall

EN CH

Introduction to the Plaza de Shenyang Redstar Macalline Furniture & Decoration Project.

My intention in the Plaza de Shenyang Redstar Furniture & Decoration Project has been to design an important and significant landmark for Shenyang city – a building immediately recognizable by the people passing through.
In order to do this I have treated the building as a contemporary urban sculpture.
A sculpture made up of volumes, surfaces, lines, and most important of all, immaterial elements such as light, shadows and wind.

My intention has been to hide the complexity of the project in a very simple architectural shape, so that people will understand it and, as with an advertising slogan, remember it easily.

The project is divided into three simple elements, very different from each other so as to create a striking contrast between them, thus giving significant aesthetic value to the design:

- The monolith volume of the shopping mall
- The drilled surface covering most of the site, changing its function - starting as a floor, becoming a wall and developing into a roof
- The glass volume of the towers and the commercial space below

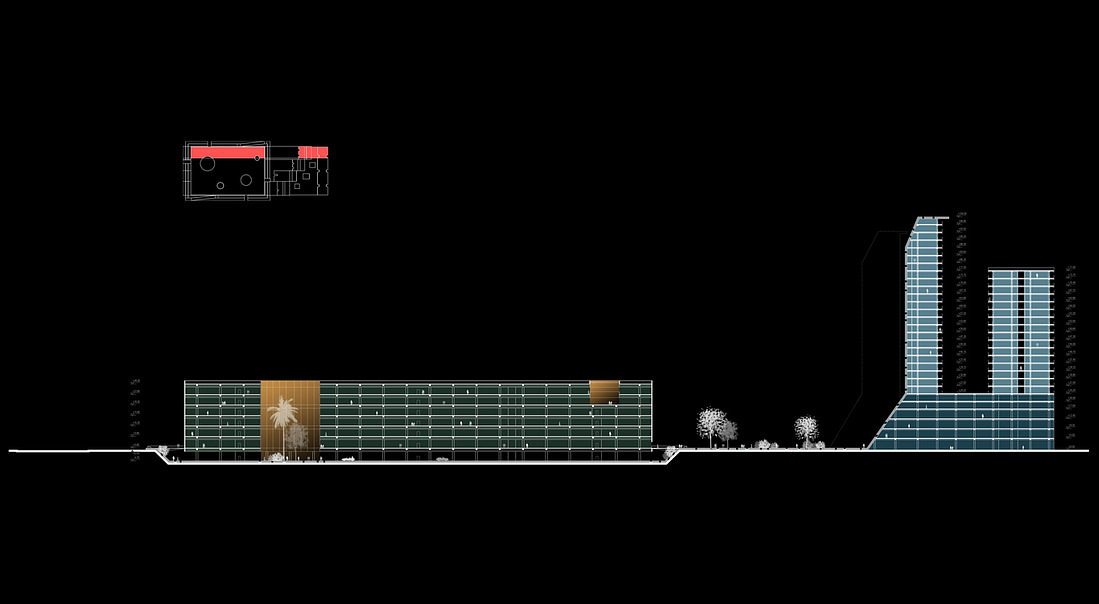

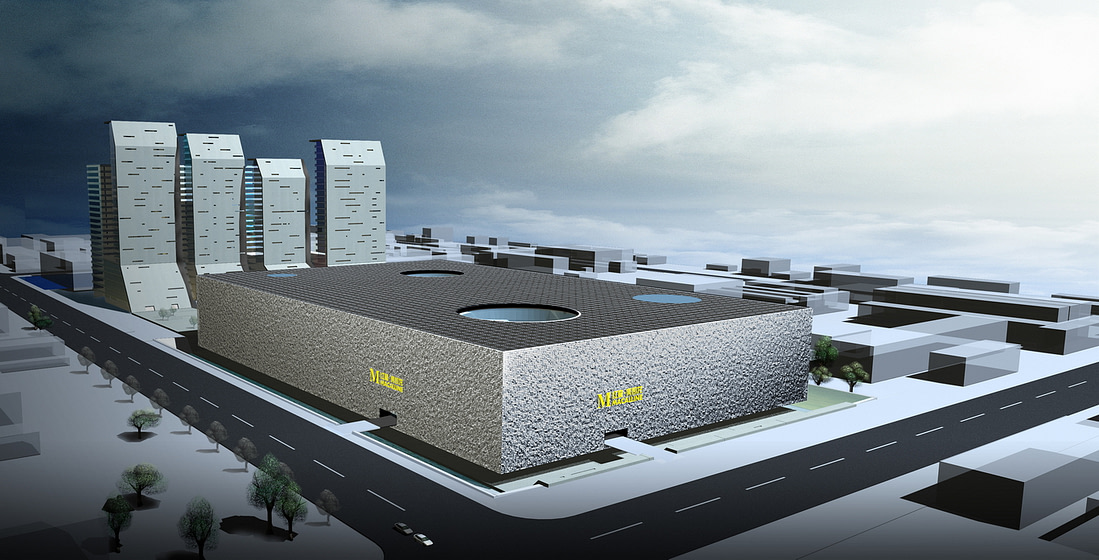

The monolith is a prismatic volume of six stories, simple and strong.
This monolith is floating on the air as a surrealistic element, made of a surrealistic material, a material that interacts with the surrounding nature, changing its behavior with the mutating weather conditions.
The façade is composed of a matrix of smooth rectangular elements made of steel or shiny laminate depending on the budget.
These elements are attached to the real wall with an elastic rubber material, so that they can flicker and move with the wind, creating a glittery shining effect with the reflection of the surroundings, the sunlight or the artificial night light.
The movement of the wind will also give to the façade a waving effect that reminds one of the wind swaying grass in a field or leaves of trees. This effect will have an attraction for people and make the building popular and well known as the city’s mutating architecture.
These artificial “leaves” are distant 10 centimeters from the real wall creating a natural ventilation façade system to insulate the building from the heat in summer and from the rain and the wind in winter. The inclination of the “leaves” will allow the rain water to only go behind them, so that the front façade will always be clear of water and possible color change.

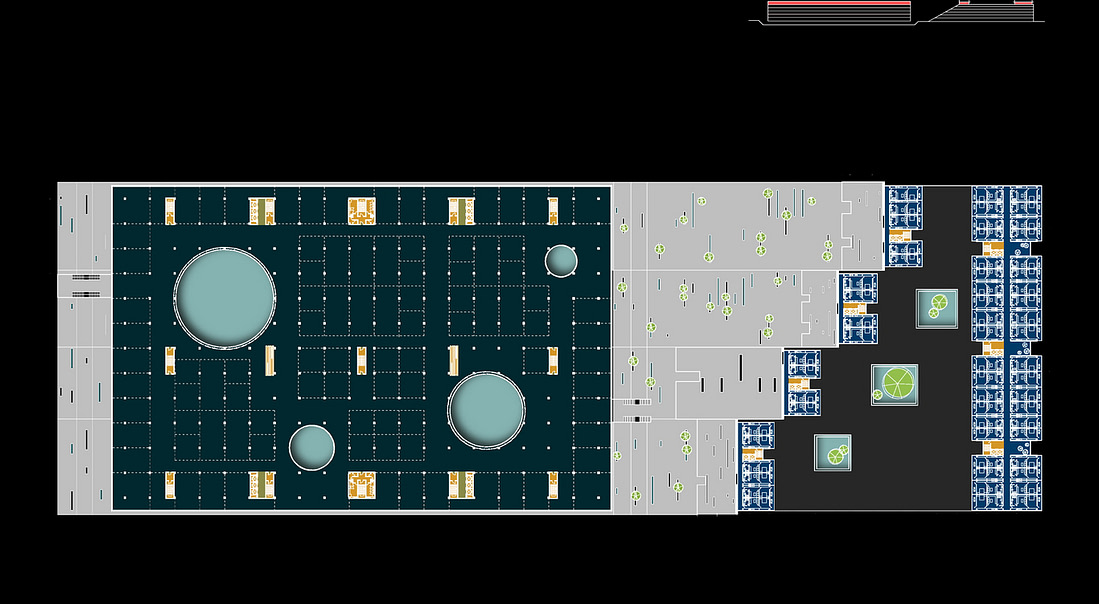

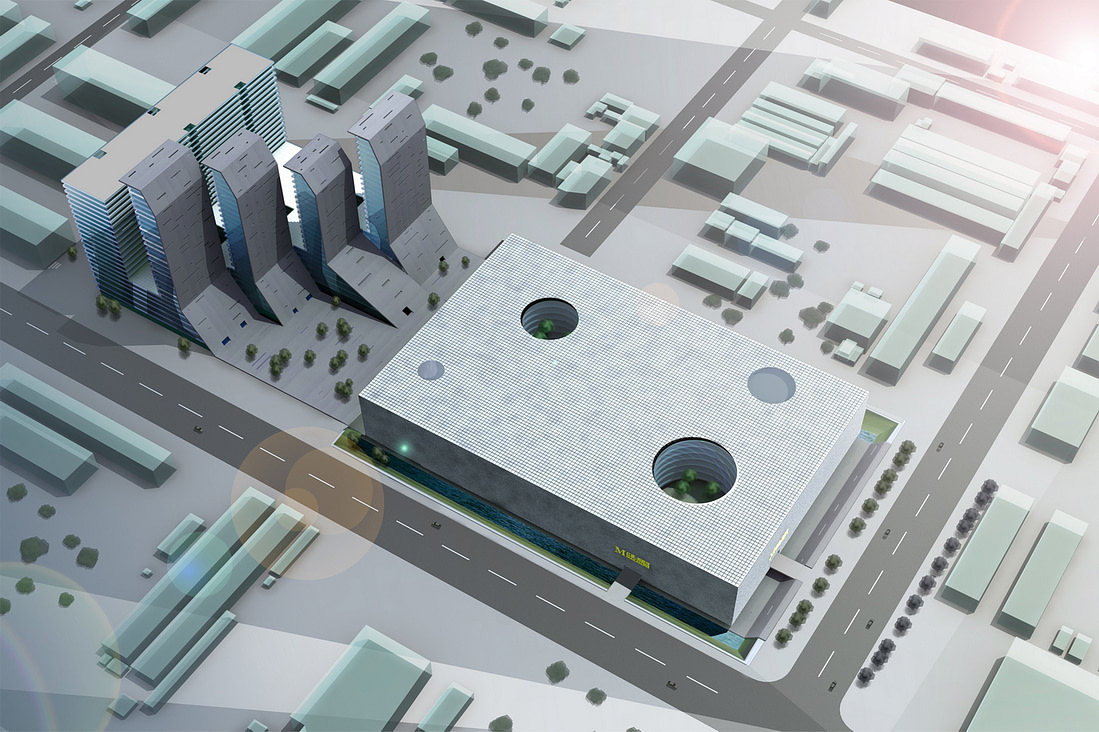

To let the natural light come through the shopping mall there will be four holes on the top of the monolith that create interior courtyards where people can see plants, lakes and a view of the sky.
The roof of the monolith will be used for the air conditioning machines covered by a steel net.

The drilled surface will be made of light concrete or a simple light natural stone to give uniformity to this strip that is 80 centimeters high.
The surface will unfold in one direction only and will encompass the whole site, from the pedestrian entrance, to the parking, to the outdoor plaza, to the towers, walls and roofs, giving uniformity to the architectural language of the project.
The holes on the surface will have different functions: they can be used for hypogeal benches, water lakes, potted plants or trees, corridor windows, or skylight roof windows.

The glass volume contains all the second shopping mall and all the residential towers. The sheets of transparent glass will be only an exterior covering material; attached immediately behind there will be a white layer and a “traditional” wall system. The effect will therefore be very plain and shiny but the insulation will be ensured by the walls.
With this system the glass is not a window and can be very thin so the cost is reduced.
On the six stories of the commercial area, the white sheet behind the glass can be used for commercial advertisements.
This commercial basement will have within it three square courtyards with greenery inside that gives light to the central part of the shopping area.
In the top part of the glass volume there are the residential towers composed of apartments of 50, 60 and 70 square meters. Most of them are orientated facing southeast, with a small percentage facing northwest.

沈阳红星美凯龙世博家具广场方案设计说明:

我们的出发点是希望通过沈阳红星美凯龙世博家具广场设计,在沈阳市树立起一座重要的,具有时代意义的地标建筑。当人们经过这里时立刻就能够注意到这个巨大的标志物。
为了实现这样的一个目标,我们把这个建筑当成一座当代城市雕塑来对待。她是一个座由柱子,外墙面,线条等构成的雕塑,而更为重要的是,我们将光线,阴影,风等非物质形态的元素引入其中,无论是形态还是空间都富有精彩的变化。

我们的另一个出发点是将项目本身复杂的功能植入到一个相对简洁的形体中去,这样做的目的是使人们可以毫不费力的理解和认识这个建筑物,借助于广告式的建筑讯息使看过它的人立刻记住它。

整个建筑群由三个简洁的元素构成,这三种元素相互之间存在着巨大的差别,这种巨大的差别所创造出的强烈对比赋予了整个设计无限的美学意义,增加了建筑的审美价值。

- 单块巨石般的 大型家具超市
- 开孔的 表皮覆盖了基地的绝大部分区域,这些表皮从头至尾扮演着不同的功能,首先作为地下车库的地面,然后是公寓塔楼的外墙面,最后成为公寓的屋面。
- 玻璃体 构成的公寓楼和底层商业空间。

单块巨石建筑物是一个六层的长方形体块,简洁明了,同时又非常的坚固。
巨石般的建筑物仿佛漂浮在空气这一超现实主义的环境因素之上,同样用一种超现实主义的材料构成整个建筑,这种材料能够与周围自然环境产生互动,它可以随着气候条件的变化改变自身形态。
立面是由矩阵形式的正方形构件组成的,这些正方形构件可以是钢材制成的,基于对预算的考虑,也可以用闪光的碾压薄片制品代替。
这些正方形构件通过一个橡胶材质的圆柱体与内部墙体形成弹性连接,因而使这些构件在风力的作用下可以随意的摆动和移位,在周围环境映射以及阳光或是夜晚人工照明的作用下产生闪烁华丽的视觉效果。
风吹过使立面产生一种波浪状的效果,可以使人联想到风吹过草地或是吹动树叶的场景。这种效果对人们来说是一种非常大的吸引力,而整个建筑也将作为城市中变化的建筑景观成为流行。
那些人工的叶片距离结构墙体10厘米,形成自然的立面通风系统,将夏天的热空气和雨水同建筑体隔离开,到了冬天则可以阻挡寒冷的北风。可以弯曲的叶片使雨水只能从它们的背后流下,这样一来正立面就可以保持清洁,它们的颜色也不会发生太大的变化。
为了将自然光引入到家具超市的内部,我们在巨石体块的顶部开了四个大洞,形成了一些有趣的内部庭院,人们可以从这里看到生机盎然的植物,清澈的水面和湛蓝的天空。

巨石建筑物的屋顶部分用来安放空调室外机,上面覆盖一张金属网面。
开孔的表皮有轻质混凝土浇筑而成,也可以用一种简洁的浅色自然石材砌筑而成,使这层80cm高的表皮产生一种均质的效果。
这层可折叠的表皮只在一个方向上覆盖了基地,从人行入口到地下停车库,再到室外广场,然后是塔楼的墙面和屋面,赋予整个建筑设计一种统一的建筑语汇。
这层表皮上所开的洞口发挥着不同的功能作用:它们可以是凹陷在地下的长椅,可亲近的水面,绿色草坪或树木,走廊的窗户,或者是屋顶天窗。

玻璃体内部容纳的是大型购物中心和一些公寓式住宅单元。最外面覆盖的透明玻璃片只是一层外部遮盖物质,紧跟在后面的是一层白色面层和一个“传统的”的外墙系统。
所以外立面可以做到非常的平整并且具有光泽,它的绝缘则由内部墙体保证。
由于这个玻璃体系不具有窗户的功能,可以使用非常薄的玻璃,这样就可以降低成本。
六层商业玻璃体系背后的白色面层可以替换成大型商业广告。
大型购物中心拥有三个方形的内部庭院,庭院内种植绿色植物,同时将自然光线引入到购物区域的中央部分。
玻璃体的上部是公寓式住宅塔楼,它们由50,60和70平方米不等的公寓单元组成。绝大多数公寓单元的朝向是东南方向,只有一小部分是朝向西北的。
