Tree House for a child

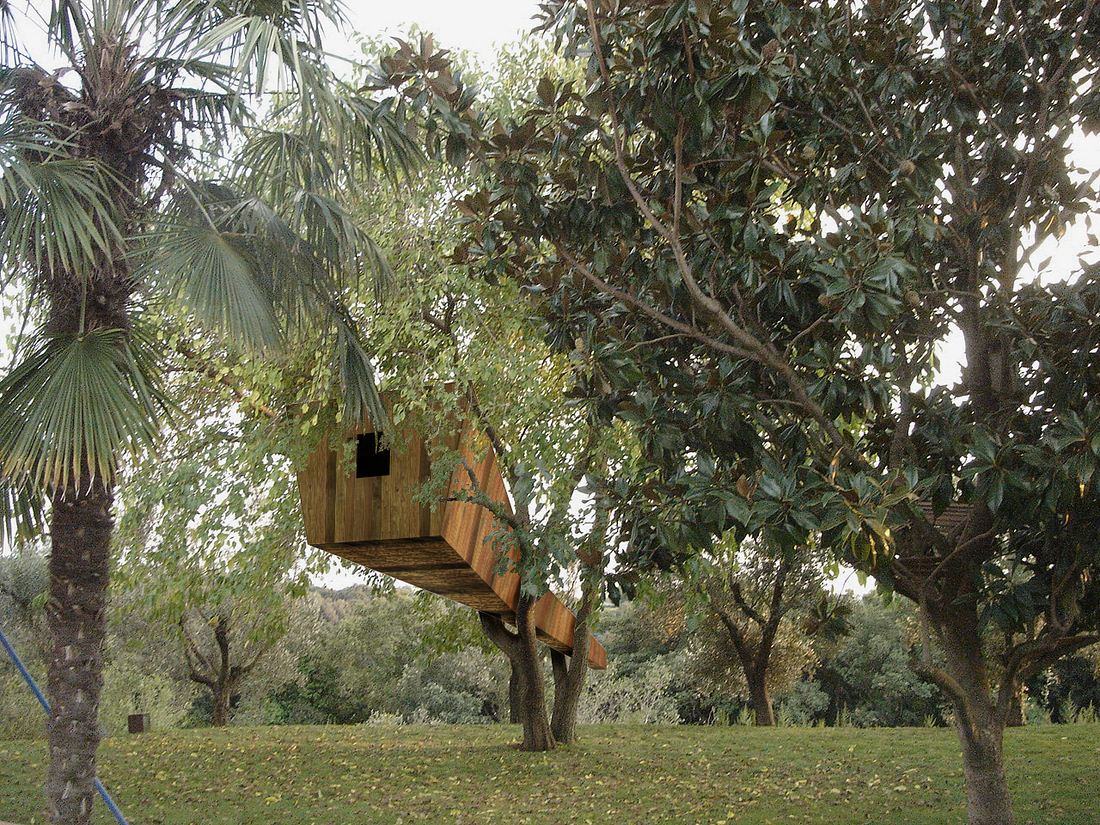

A house on a tree at Monte d’Oro, Rome

This project has a rather unusual and special client … a nine year old child who is so attached to his tree that he wants to live on top of it.

The tree has an unusual and fortunate shape as it is formed by two main branches, each forked into two, and each precisely on the same axis, but at a different level.

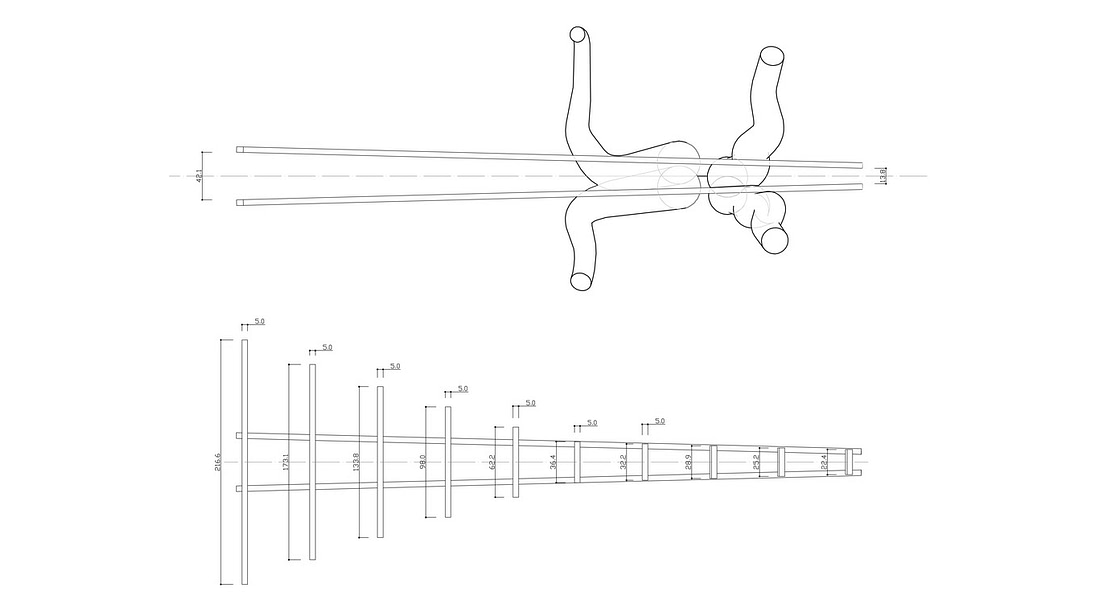

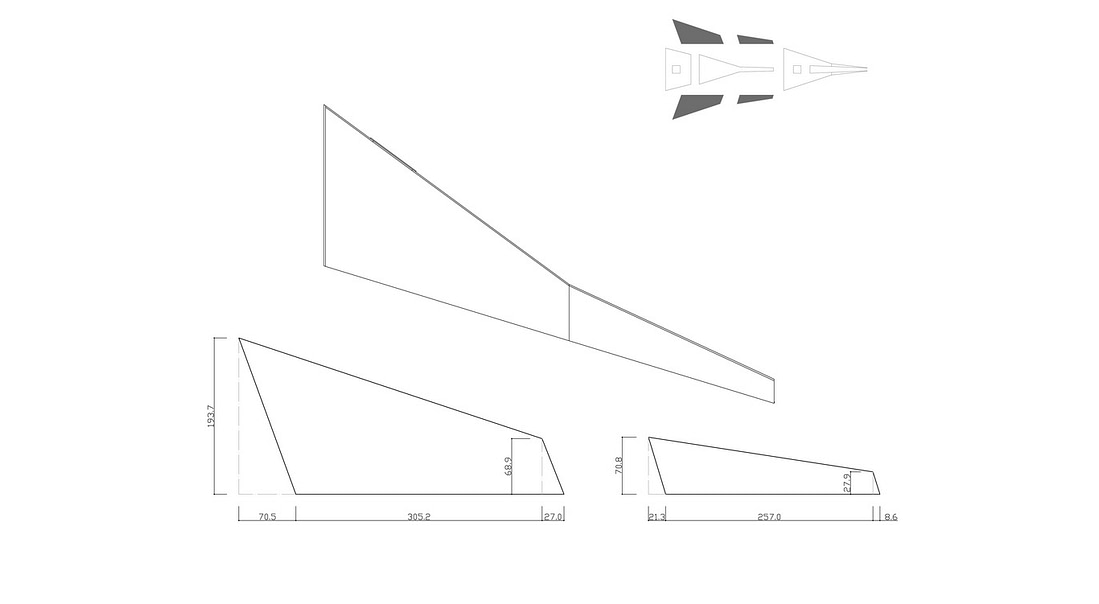

The project intends to use these two natural "forks" as a base or seat for two wooden beams in laminar wood which would jut out for three metres and which would form a triangular structure in the tree and provide stability.

It is on these beams that the secondary structure would mingle into the tree and its shape would be like a funnel imbedded onto the branches.

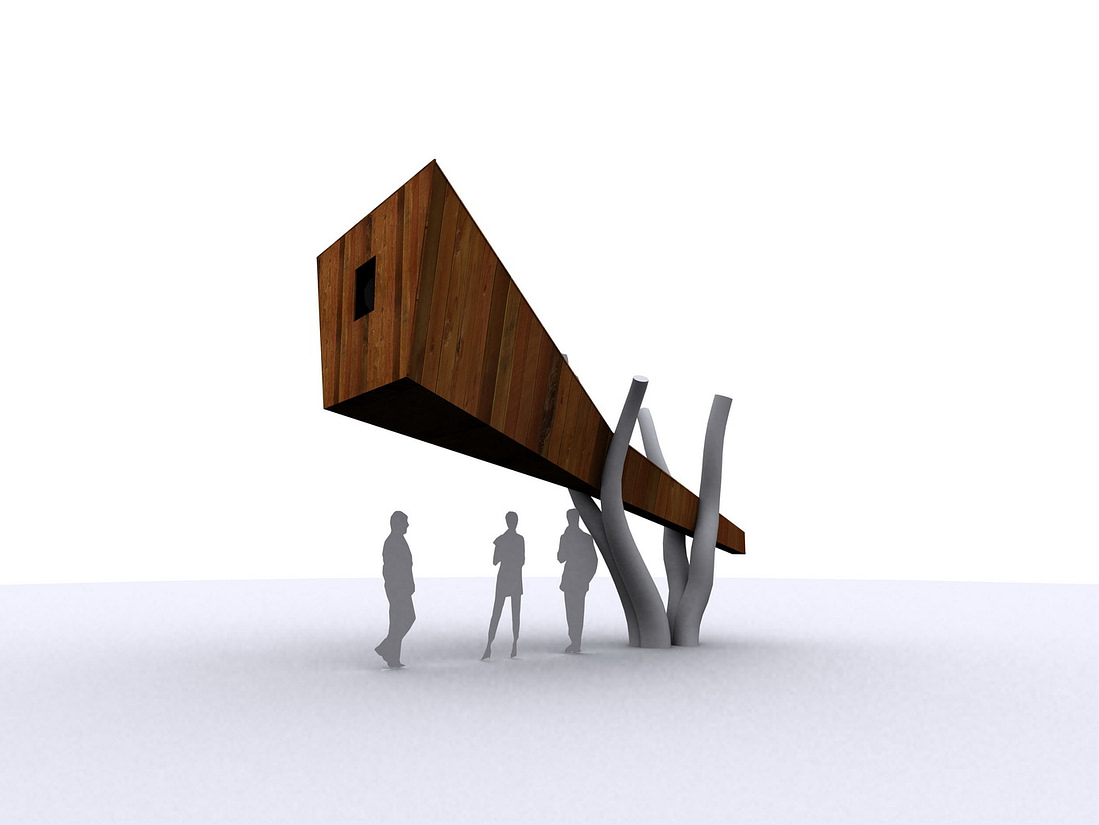

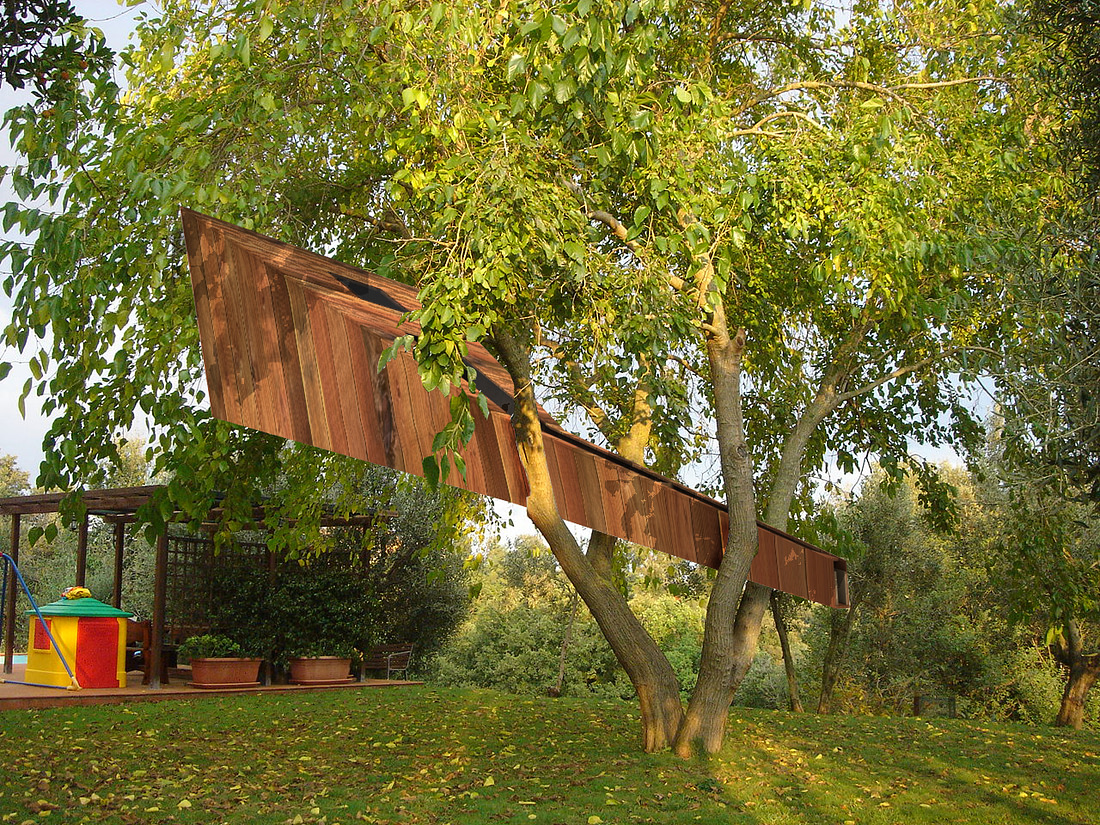

The result would be a bizarre object which seems to defy the law of statics as its bulkiest part is exactly at the end of the overhanging structure.

Access would be by a rope ladder (positioned at the "funnel" entrance and where the rain water would drain); here there should be a cemented base to which the ladder is attached so as to counterbalance the obvious overhanging from the far end.

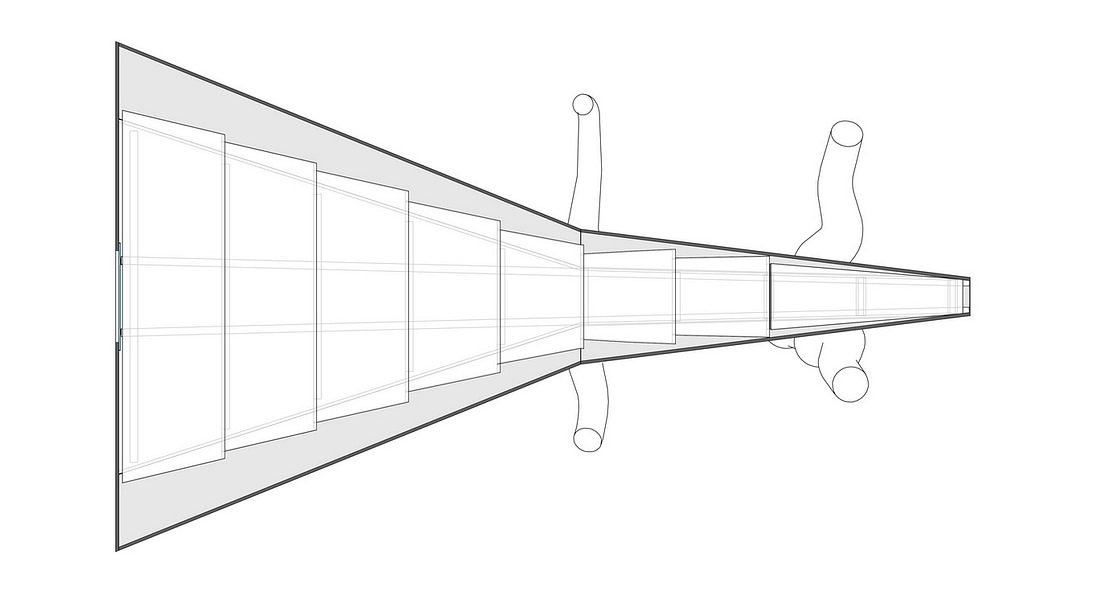

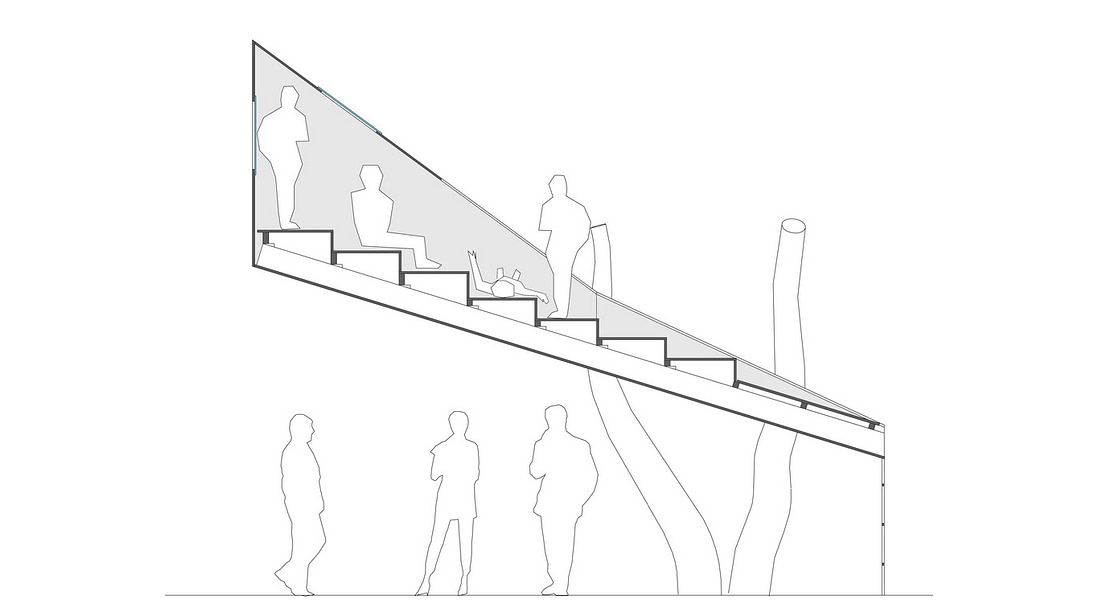

The result would be a structure that leans into the natural form of the branches and the flooring would be a series of boards following the natural incline, like a big flight of stairs.

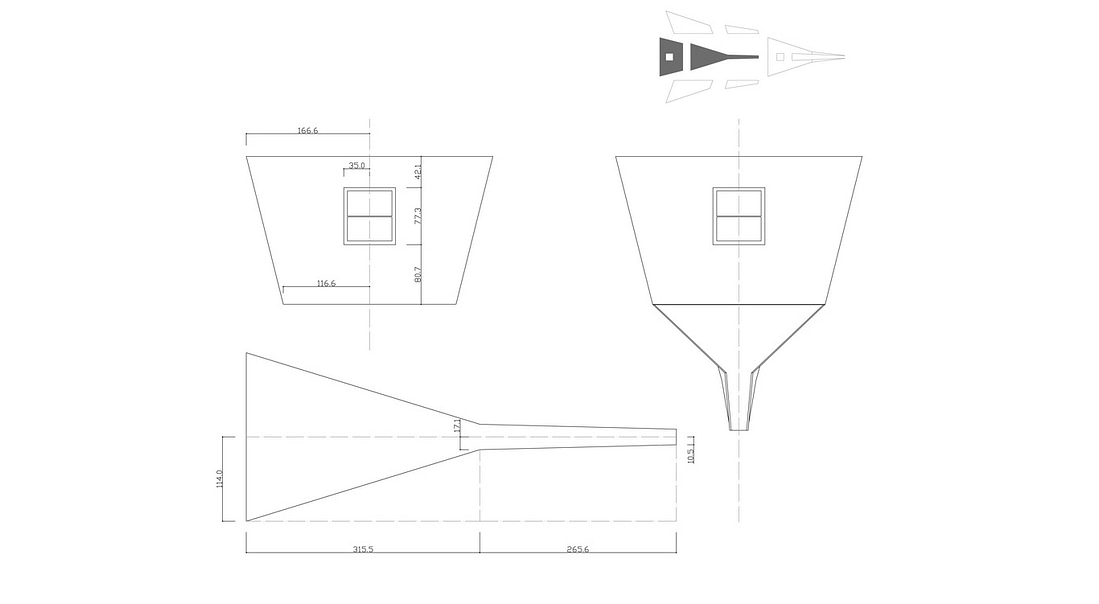

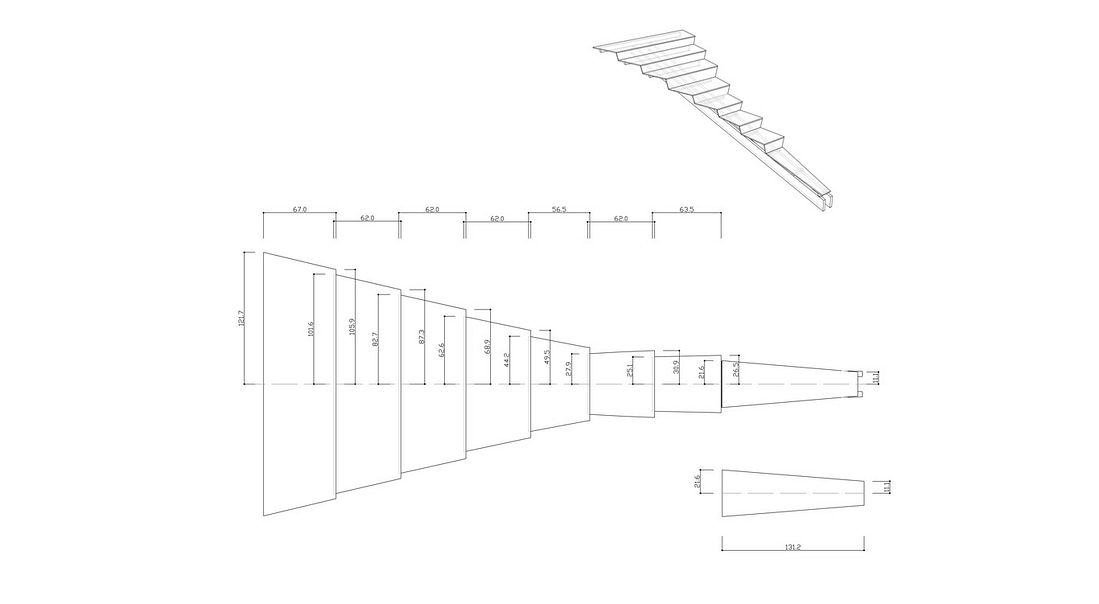

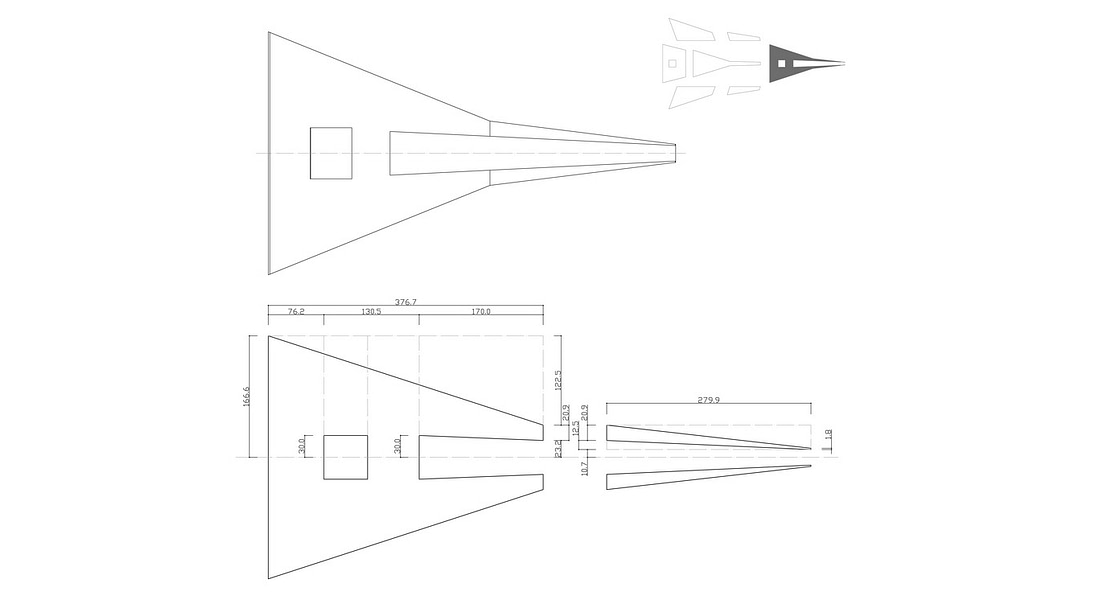

Actually each step or plank would have a different function according to the width or position, to be transformed into a bed, a bench, a chair, a table, or if outside the hut, a theater or a terrace. The skin, made of planks and wooden panels, would be structured to make space for a terraced entrance, a central window and a skylight to be able to look up and see foliage above and at nigh time the stars in the sky.

Tree House for a child 儿童树屋

A house on a tree at Monte d’Oro, Rome 树山的房子,在罗马的蒙特多罗

这个方案的委托人非同寻常——一个深爱自己的树以至于打算生活在上面的九岁男孩

巧得很,树的形状很奇特,是由两根主干组成的,每根主干又有两个分叉,他们恰巧精确的处在同一个纵轴上但是高度不同。

本方案试图利用这两组自然分叉作为基础或者说是底座来架起两根薄木片制成的木梁,木梁出挑仅三米,并在树上构成稳定的三角形支撑结构。

在这两根梁的基础上,加入二级结构与树融为一体,形状类似埋在树杈间的漏斗。
成品会是一个很奇怪的东西,看上去似乎违反了力学规律,因为它体积最大的一头恰恰位于结构悬挑的顶端。

入口设有绳梯(就在“漏斗”的端口处,也是排放雨水的地方),这里应该设有水泥基座来固定绳梯,也用来平衡远端悬挑的部分

成品是倚靠在树干自然形态上的构筑物,地板是一系列随自然坡度跌落的木板,就像一段一段宽阔的楼梯。

实际上每段台阶或板条都随宽度和位置的不同具有不同的功能,诸如床、长凳、椅子、桌子,或者如果在屋外的话,成为剧院或露台等。外表面是由木条和木板制成的,用来构成露台入口的空间、中央的窗户以及可以在白天看树叶在晚上看星星的天窗。

Credits:

Architecture firm: 3GATTI
Chief architect: Francesco Gatti
Project manager: Ingrid Pu

Client: Francesco Faiella

Location: Monte d’Oro, Pomezia, Rome, Italy

Year: 2006
